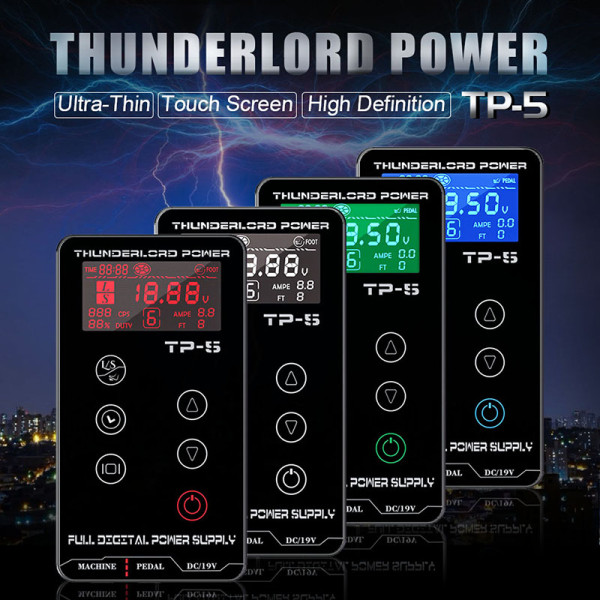

THUNDERLORD Tattoo Power Supply TP-5 Item NO.: TP-011

Write a Review Sold (412)

US$ 70.00

Quantity: Stock ( 9999999 )

Product Name	THUNDERLORD Tattoo Power Supply TP-5
Item NO.	TP-011
Weight	1 kg = 2.2046 lb = 35.2740 oz
Category	Tattoo Power Supplies
Creation Time	2020-07-01

Specification:
Brand: THUNDERLORD
Type: Tattoo Power Supply
Materia: Plastic Shell
Weight: about 680g
Display: LCD Digital
Unit Weight: 650g
Input voltage: 110V-240V, AC50/60Hz.
Output Voltage: 3~18v
Output Power: 0.3-45W
Rating Current: 0-2A.
Operating Temperature: 5 ~ +45
Relative humidity 30%~75%.
Operating Air Pressure: 900-1060 HPA

Features:
1. Ultra-thin OLED touch screen, sensitive touch experience.
2. Fast response speed, high brightness, high resolution and stable image.
3. Small and light, easy to carry, save space.
4. Blue, green, red and white, four colors for you to choose.
5. With brackets, perfect perspective for tattoo artists.
6. Full-featured, adjustable power, voltage, time and mode.

Key Functions:
Switch ON/OFF and START/STOP functions:
A: When plugged into the power supply, press"POWER BUTTON" for 3 seconds to switch on, or another 3 seconds to switch off.
B: 5 seconds press on foot pedal to switch on, when switch on, touch "POWER BUTTON"" to start/stop the power

Adjust the output voltage:
When switched on, touch "VOLTS+" "VOLTS-" to adjust the voltage output.

L/S & Foot Pedal Moodle:
When switched on, touch "L/S BUTTON" switch to L/S model, when switch to L model, L be lighted, switch to model S will be lighted.
when switched on, press "L/S BUTTON" for 3 seconds to change the foot pedal model
--This machine offer two kinds of foot pedal mood, one is contineous output mood, another is inching output mood

Preset Voltage:
This machine provides 6 preset voltage under mood of L/S, the factory settings:
L1-5V/L2-6V/L3-7V/L4-8V/L5-9V/L6-9.5V
S1-6V/S2-6.5V/S3-7.5V/S4-8.5V/S5-9.5V/S6-10V
touch "PRESET BUTTON" swith successively to preset voltage, to adjust the preset voltage, touch "PRESET BUTTON" to adjust the voltage gears. Touch "VOLTS+" "VOLTS-" to adjust voltage, then press "PRESET BUTTON" for 3 seconds to save the preset voltage.

Timing Functions:
Touch "TIME BUTTON" to start the time, there will show the working time on the screen, long press "TIME BUTTON" to reset the total working time.

How to use?
1. Connecting power supply.
2. Connecting foot pedal.
3. Connecting tattoo machine.
4. Press the Power Button for 3 Seconds to Start Power Supply.
5. Adjust the voltage, change the L/S mode or pedal mode, and turn on the timing function.

6. Start by tapping the power button in the boot state.
